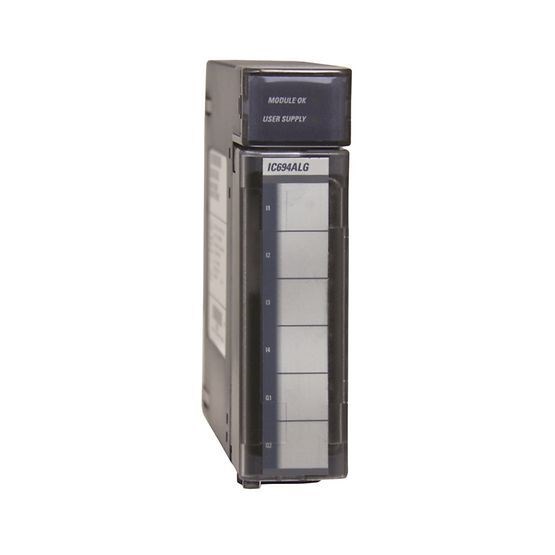

Emerson IC694ALG390 Analog Output Module 10VDC

Product Code: IC694ALG390

  • Supports Modbus, Profinet, Profibus protocols
  • Rated for 10 VDC and 0.02 A current
  • Panel or DIN Rail mounting options
  • Operates up to 60°C with IP20 protection
  • Complies with CE, ATEx C1D2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Output Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
13 bits
Channel Isolation
Galvanic Isolation
No. of Analog Outputs
2 Ch
Output Ratings
-10 VDC- 10 VDC
Analog Outputs
2 Ch
Output Type
Single Analog Voltage
Power Consumption
0.16W (Backplane) 2.88W (Isolated)
Supply Voltage
5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type
Screw Terminal

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL
