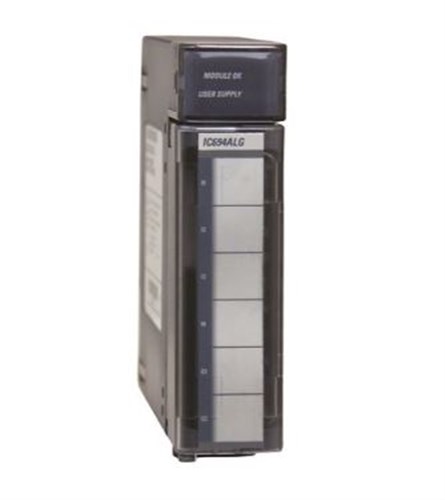

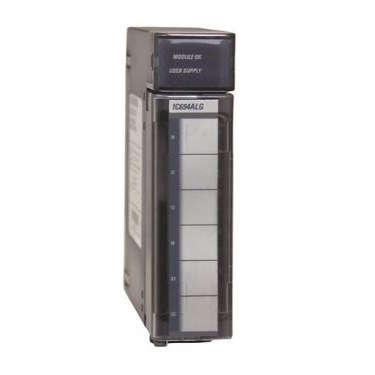

Emerson IC694ALG232 Analog Input Module 16 Digital Outputs

Product Code: IC694ALG232

  • Supports Zone 2 CE, ATEx C1D2 standards
  • Compatible with ABS, BV, DNV approvals
  • Mounts on panel or DIN rail
  • Rated current: 110 mA, 112 mA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
16 bits
Channel Isolation
250 V AC continuous, 1500 V AC for 1 minute
Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Input Ratings
0-10 VDC (Uni) -10-10 VDC (Bi)
Input Type
Single/Differential Analog Voltage
Power Consumption
0.56W (Backplane) 2.64W (Isolated)
Supply Voltage
5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type
Screw Terminal
Analog Inputs
16 Ch (Single)/ 8 Ch (Differential)

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
No

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
