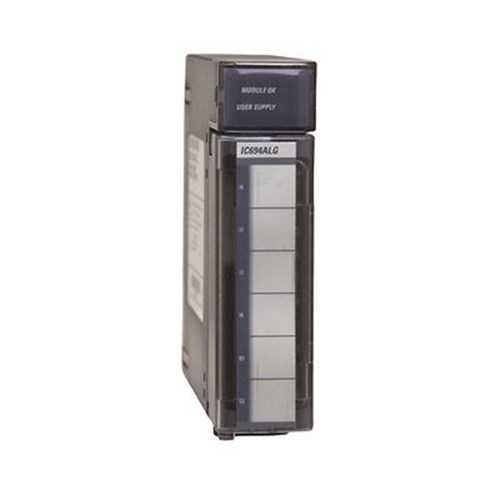

Emerson IC694ALG223CA Analog Input Module

Product Code: IC694ALG223CA

  • Supports Modbus, Profinet, Profibus protocols
  • Suitable for panel or DIN rail mounting
  • Operates at up to 60°C safely
  • Rated current of 0.02 A
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
12 bits
Channel Isolation
250 V AC continuous, 1500 V AC for 1 minute
Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Input Ratings
1 to 20 mA, 4 to 20 mA 4 to 20 mA Enhanced
Input Type
Single Analog Current
Power Consumption
0.6W (Backplane) 1.56W (Isolated)
Supply Voltage
5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type
Screw Terminal
Analog Inputs
16 Ch

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
UL HAZLOC, Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
