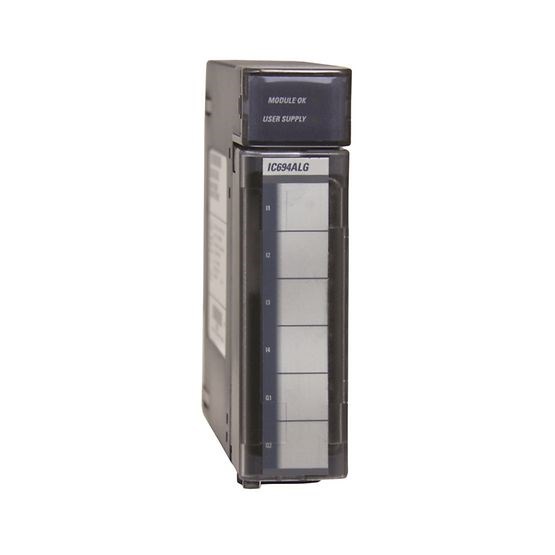

Emerson IC694ALG221CA Analog Input Module 4 Digital Outputs

Product Code: IC694ALG221CA

  • Supports Modbus, Profinet, Profibus protocols
  • Panel and DIN Rail mounting options
  • Operates up to 60°C efficiently
  • IP20 protection rating for safety
  • Zone 2 CE, ATEx C1D2 certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
12 bits
Channel Isolation
250 V AC continuous, 1500 V AC for 1 minute
Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Input Ratings
4 to 20 mA 0 to 20 mA
Input Type
Differential Analog Current
Power Consumption
0.125W (Backplane) 2.4W (Isolated)
Supply Voltage
5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type
Screw Terminal
Analog Inputs
4 Ch

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
UL HAZLOC, Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
