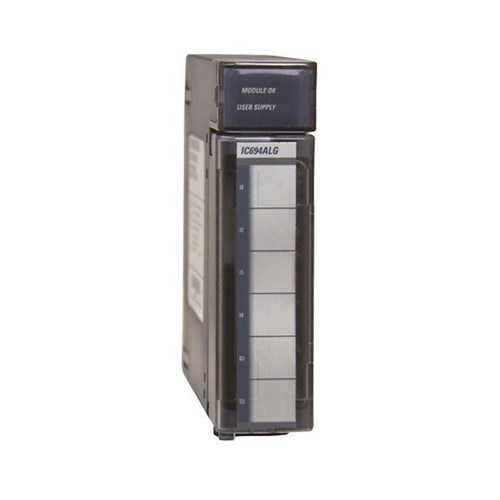

Emerson IC694ALG220 Analog Input Module 10VDC 4 Digital Outputs

Product Code: IC694ALG220

  • Supports Modbus, Profinet, Profibus protocols
  • Operates at 10 VDC for reliable performance
  • Versatile panel or DIN rail mounting options
  • Functions effectively up to 60°C temperature
  • IP20 protection for safe indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
12 bits
Channel Isolation
Galvanic Isolation
No. of Analog Inputs
4 Ch
Input Ratings
-10 VDC- 10 VDC
Input Type
Differential Analog Voltage
Power Consumption
0.135W (Backplane) 2.352W (Isolated)
Supply Voltage
5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type
Screw Terminal
Analog Inputs
4 Ch

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HAZLOC, Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR
Certifications / Approvals
UL

Documents

IPD Product Catalogue V17
