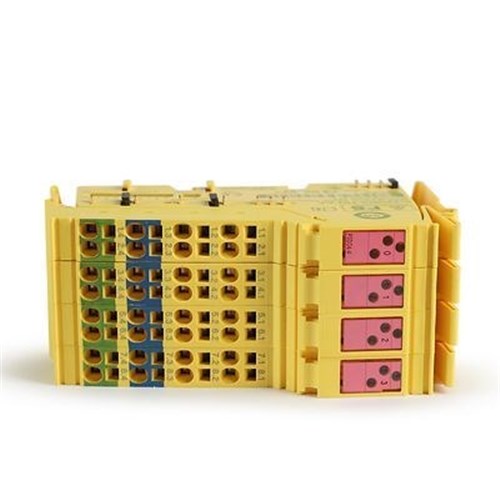

Product Code: IC220SDL753

Output module with 24 VDC rated voltage
Supports up to 3 A rated current
IP20 protection for indoor use

Specifications

General

Product Type

Safe Digital Output Module

Brand

Emerson

Series

VersaSafe

Electrical

Channel Isolation 500 V AC	Digital Outputs 8	Output Ratings 2 A per output at 24 V DC
Output Type Safe positive switching digital	Supply Voltage 19.2 to 30 V DC	Terminal Type Spring-cage terminals

Mechanical

Housing Material

Plastic PBT, self-extinguishing (V0)

Mounting Method

35 mm DIN rail

Dimensions & Physical Data

Depth

71.5 mm

Height

119.8 mm

Width

48.8 mm

Environmental

Storage Temperature

-25 to 70 °C

Operating Temperature

-25 to 55 °C

IP Rating

IP20

Communication & Control

Fieldbus Interface

PROFIsafe

Safety, Standards & Compliance

Compliance Standards

CE, UL, cUL, EN 61508, EN 62061, EN ISO 13849-1

Safety Integrity Level

SIL 3 (two-channel), SIL 2 (single-channel)

Emerson IC220SDL753 Output Module 24VDC 8 Digital Inputs

Product Code: IC220SDL753
