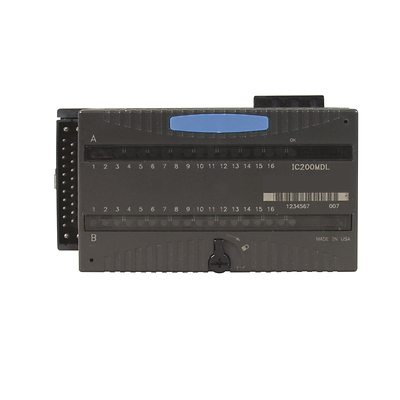

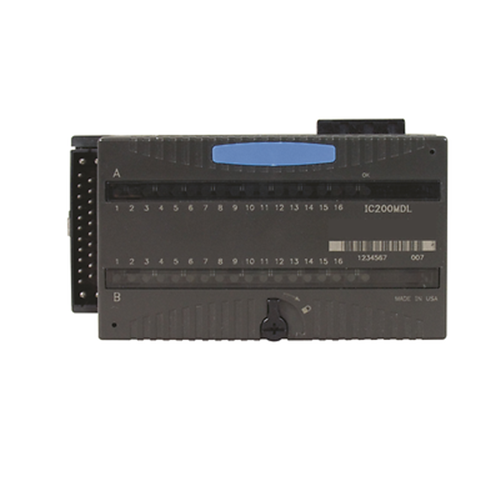

Emerson IC200MDL930 Relay Output Module 8 Outputs 8 Digital Outputs

Product Code: IC200MDL930

  • Supports Modbus, Profinet, Profibus, DeviceNet
  • Rated current of 2 A for efficient performance
  • Easy DIN rail mounting for quick installation
  • Operates reliably up to 60°C
  • IP20 protection rating ensures durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Relay Output Module
Brand
Emerson
Series
Versamax

Electrical

Channel Isolation
Optical
Digital Outputs
8
No. of Digital Outputs
8
Output Ratings
0 to 125 V DC, 5/24/125 V DC nominal 0 to 265 V AC (47 to 63Hz), 120/240 V AC nominal
Output Type
Voltage
Supply Voltage
0 to 125 V DC, 5/24/125 V DC nominal 0 to 265 V AC (47 to 63Hz), 120/240 V AC nominal
Terminal Type
Connector

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE

Documents

IPD Product Catalogue V17
