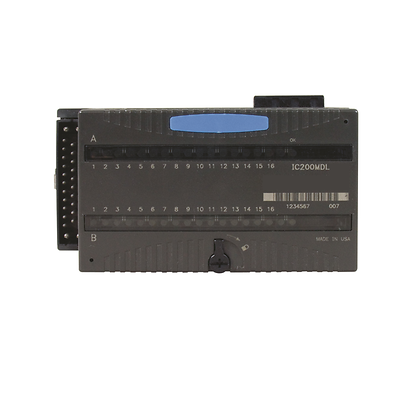

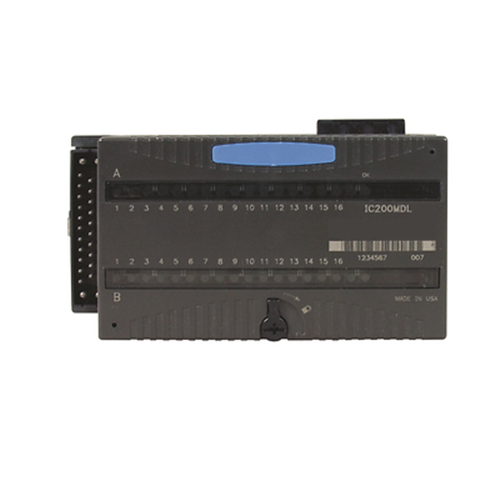

Emerson IC200MDL744 Discrete Output Module 24VDC 32 Outputs 32 Digital Outputs

Product Code: IC200MDL744

  • Supports Modbus, Profinet, Profibus & DeviceNet
  • Operates at 24 VDC with 0.5 A current
  • Easy DIN Rail mounting
  • Max operating temp of 60°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Output Module
Brand
Emerson
Series
Versamax

Electrical

Channel Isolation
Optical
Digital Inputs
0
Digital Outputs
16
Output Ratings
5 V DC-TTL mode 12/24 V DC mo
Analog Outputs
0
Output Type
Voltage
Supply Voltage
+4.75 to +5.25 V DC, +5 V DC nominal +10.2 to +30 V DC, +12/24 V DC nominal
Terminal Type
Connector
Analog Inputs
0

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
