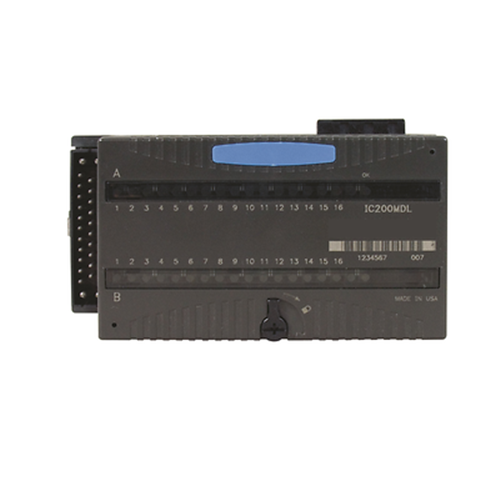

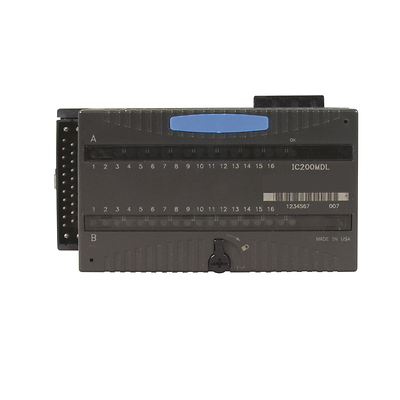

Emerson IC200MDL643 Discrete Input Module 12VDC 16 Outputs 16 Digital Inputs

Product Code: IC200MDL643

  • Supports Modbus, Profinet, Profibus, DeviceNet
  • Operates at 12 VDC for efficient power use
  • Easy DIN Rail mounting for quick installation
  • Reliable performance up to 60°C temperature
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Input Module
Brand
Emerson
Series
Versamax

Electrical

Channel Isolation
Optical
Digital Inputs
16
Digital Outputs
0
Analog Outputs
0
Input Ratings
0 to +15 V DC, +5/12 V DC nominal
Input Type
Voltage
Supply Voltage
5V DC, 12V DC
Terminal Type
Connector
Analog Inputs
0

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
