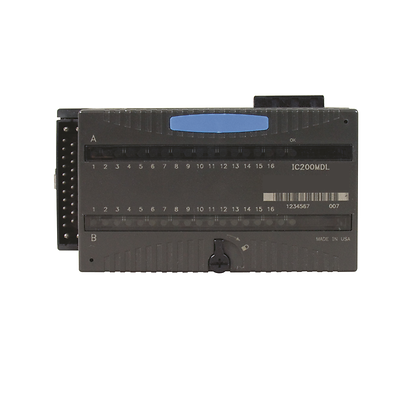

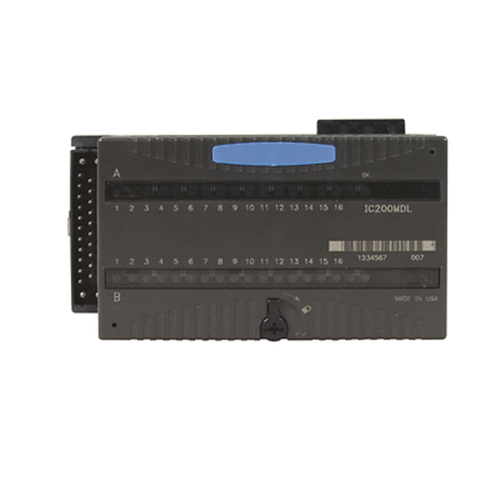

Emerson IC200MDL640 Discrete Input Module 24VDC 16 Outputs 16 Digital Inputs

Product Code: IC200MDL640

  • Supports Modbus, Profinet, Profibus, DeviceNet
  • 24 VDC rated voltage for reliable operation
  • Easy DIN rail mounting
  • Operates up to 60°C temperature
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Input Module
Brand
Emerson
Series
Versamax

Electrical

Channel Isolation
Optical
Digital Inputs
16
No. of Digital Inputs
16
Input Ratings
0 to +30 V DC, +24 V DC nominal
Input Type
Voltage
Terminal Type
Connector

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE
