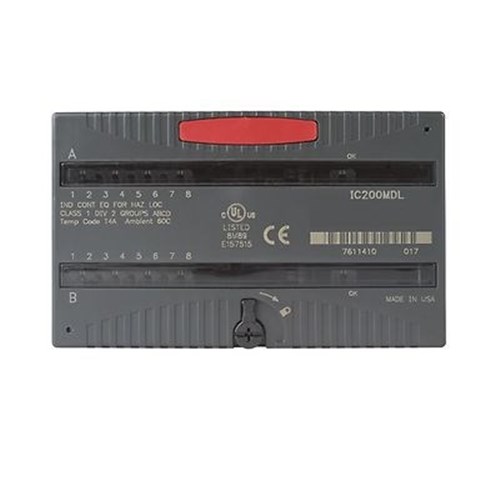

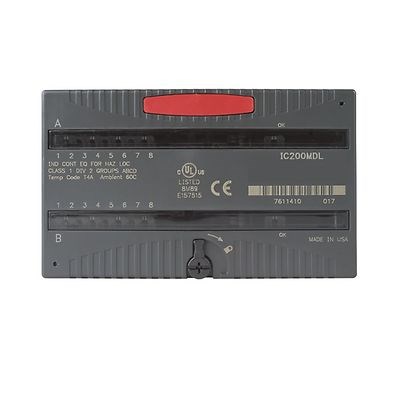

Emerson IC200MDL330 Discrete Output Module 120VAC 16 Outputs 16 Digital Outputs

Product Code: IC200MDL330

  • Supports Modbus, Profinet, Profibus & DeviceNet
  • Operates at 120 VAC with 0.5 A current
  • DIN Rail mounting for easy installation
  • IP20 protection for secure operation
  • Complies with ATEx and IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Output Module
Brand
Emerson
Series
Versamax

Electrical

Channel Isolation
Optical
Digital Inputs
0
Digital Outputs
16
Output Ratings
85 to 132 V AC (47 to 63Hz), 120 V AC nominal
Analog Outputs
16
Output Type
Voltage
Supply Voltage
85 to 132 V AC (47 to 63Hz), 120 V AC nominal
Terminal Type
Connector
Analog Inputs
0

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
