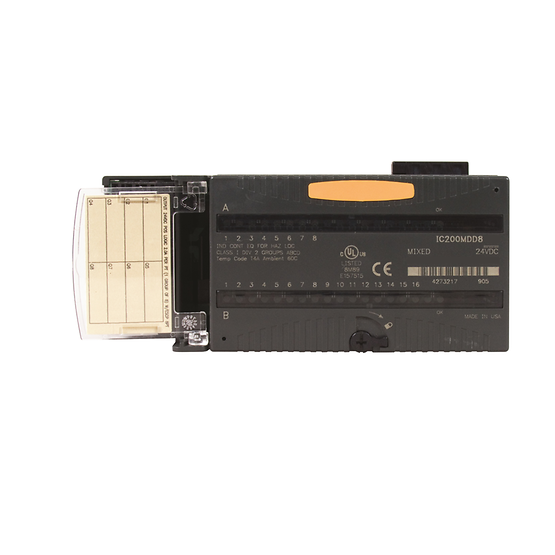

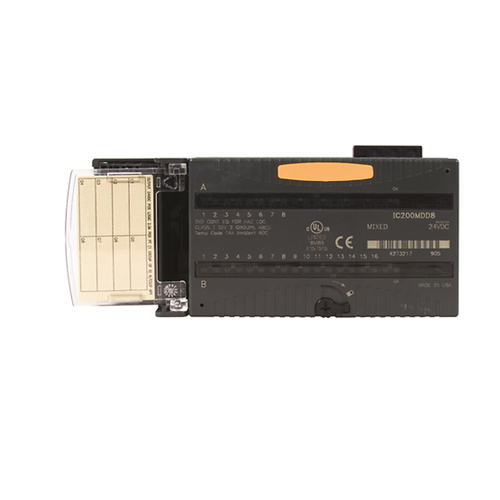

Emerson IC200MDD851 Mixed Module 12/24VDC, 5/12VDC

Product Code: IC200MDD851

  • Suitable for 12/24 VDC, 5/12 VDC systems
  • Handles up to 0.5 A current
  • Easy DIN rail mounting
  • Operates efficiently at 60°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mixed Discrete Modules
Brand
Emerson
Series
Versamax

Electrical

Channel Isolation
Optical
Digital Inputs
8
Digital Outputs
16
Output Ratings
+10.2 to +30 V DC, +12/24 V DC nominal
Input Ratings
0 to +15 V DC, +5/12 V DC nominal
Input Type
Voltage
Output Type
Voltage
Supply Voltage
+10.2 to +30 VDC, +12/24 VDC nominal
Terminal Type
Connector

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE
