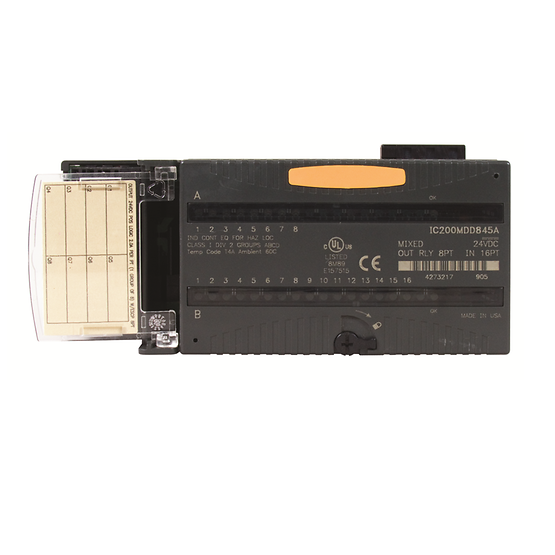

Emerson IC200MDD845 Mixed Module 24VDC

Product Code: IC200MDD845

  • Operates at 24 VDC with 2 A current
  • Easy DIN Rail mounting
  • Suitable for up to 60°C environments
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mixed Discrete Modules
Brand
Emerson
Series
Versamax

Electrical

Channel Isolation
Optical
Digital Inputs
16
Digital Outputs
8
Output Ratings
0 to 125 V DC, 5/24/125 V DC nominal 0 to 265 V AC (47 to 63Hz), 120/240 V AC nominal
Input Ratings
0 to +30 V DC, +24 V DC nominal
Input Type
Voltage
Output Type
Voltage
Supply Voltage
0 to 125 V DC, 5/24/125 V DC nominal 0 to 265 V AC (47 to 63Hz), 120/240 V AC nominal
Terminal Type
Connector

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE
