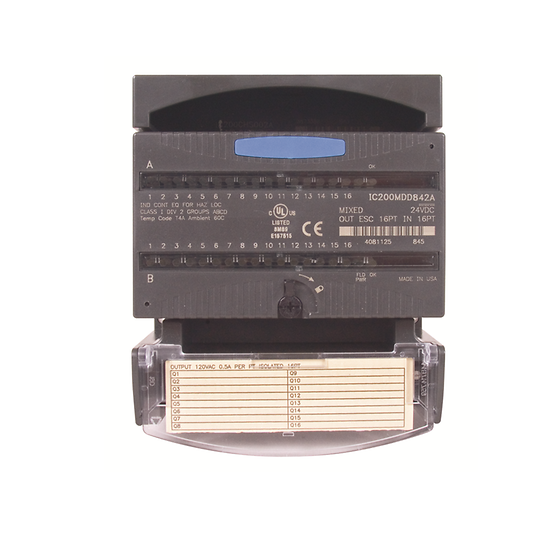

Emerson IC200MDD842 Mixed Module 24VDC

Product Code: IC200MDD842

  • Compact DIN rail mounting
  • Operates at 24 VDC, 0.5 A
  • Max temp: 60°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mixed Discrete Modules
Brand
Emerson
Series
Versamax

Electrical

Channel Isolation
Optical
Digital Inputs
8
Digital Outputs
16
Output Ratings
+18 to +30 V DC, +24 V DC nominal
Input Ratings
0 to +30 V DC, +24 V DC nominal
Input Type
Voltage
Output Type
Voltage
Supply Voltage
+18 to +30 V DC, +24 V DC nominal
Terminal Type
Connector

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE
