Products

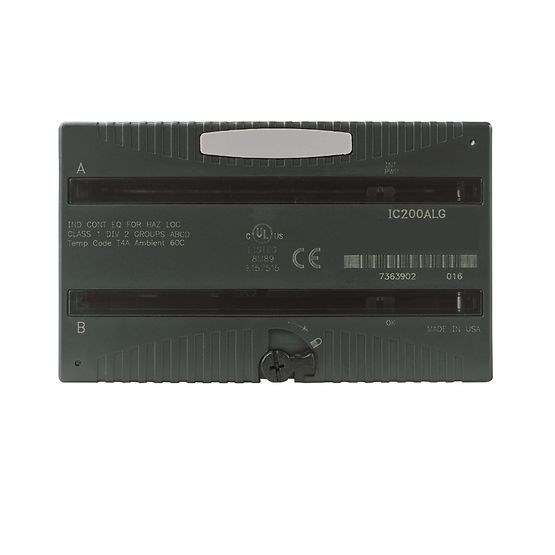

VERSAMAX ANALOG OUTPUT MODULE 16 BIT VOL/CUR 4 ISO CHANNEL EMERSON

Product Code: IC200ALG331

  • Output Module for DIN Rail mounting
  • Operates up to 60°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Isolated Analog Output Module
Brand
Emerson
Series
VersaMax

Electrical

Analog Resolution
16 bit
Channel Isolation
1500 V AC
Digital Inputs
0
Digital Outputs
0
Output Ratings
Current mode: +4 to 20mA Voltage mode: ±10 V DC
Analog Outputs
4
Output Type
Voltage or current
Terminal Type
Requires VersaMax I/O carrier
Analog Inputs
0

Dimensions & Physical Data

Depth
70mm
Height
163.5mm
Width
66.8mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2, ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
