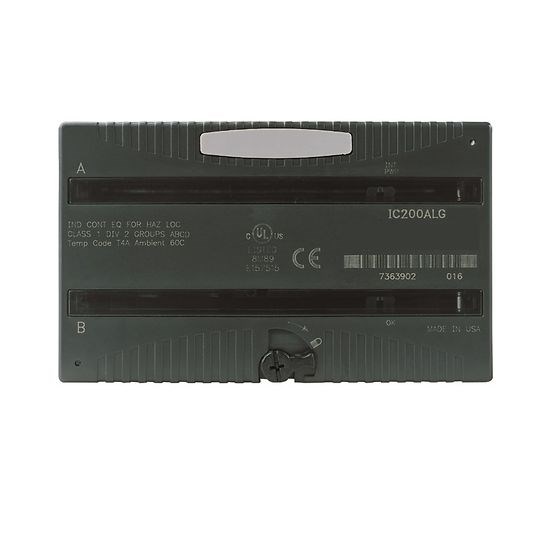

Emerson IC200ALG266 Analog Input Module 15inputs 15 Outputs

Product Code: IC200ALG266

  • Input module for DIN rail mounting
  • Operates up to 60°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Versamax

Electrical

Analog Resolution
15 bit
Channel Isolation
Optical
Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Input Ratings
4 to 20mA (default : no terminal jumper installed) 0 to 20mA (with terminal jumper installed)
Input Type
Current
Terminal Type
Connector
Analog Inputs
15

Dimensions & Physical Data

Depth
50mm
Height
66.8mm
Width
110mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2 ATEX Zone 2
Safety Integrity Level
SIL2
Certifications / Approvals
UL, CE

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
