Products

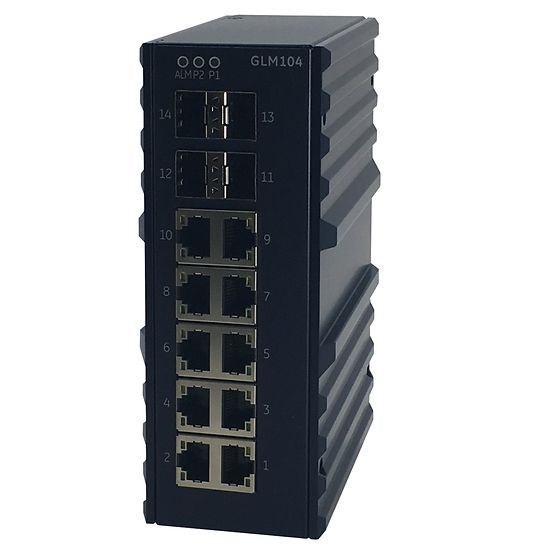

Emerson IC086GLM104 PROFINET Managed Gigabit EtherNet Switch 10/100 Mbps/1Gbps in RJ45: 10 100FX or 1000 BaseF

Product Code: IC086GLM104

  • Compact size: 77mm W x 154mm H x 128mm D
  • Wide temp range: -40 to 70°C
  • High protection rating: IP30
  • Multiple ports for versatile connectivity
  • Certified by UL, CSA, and CE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switch
Brand
Emerson

Electrical

Input Type
DC
Power Consumption
Max. 17W
Supply Voltage
12V to 58V DC

Dimensions & Physical Data

Depth
128mm
Height
154mm
Width
77mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP30

Communication & Control

Ethernet Ports
10: 100/1000Base-T(X)4: 100/1000Base-X SFP Port
Fieldbus Interface
0
Serial Ports
0
USB Port
0
Supported Ethernet Protocols
ProfinetIGMPSNMP

Safety, Standards & Compliance

Hazardous Location Ratings
UL/CSA C22, EN61010-1, CE
Certifications / Approvals
EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS)IEC 60068-2-27IEC60068-2-32IEC60068-2-6

Documents

IPD Product Catalogue V17
