Product Code: IC086GLM082

Compact size: 77mm x 154mm x 128mm
Wide temp range: -40 to 70°C
IP30 protection for secure use
Multiple ports: (8) RJ-45, (2) SFP
Meets UL, CSA C22, EN61010-1, CE standards

Specifications

General

Product Type

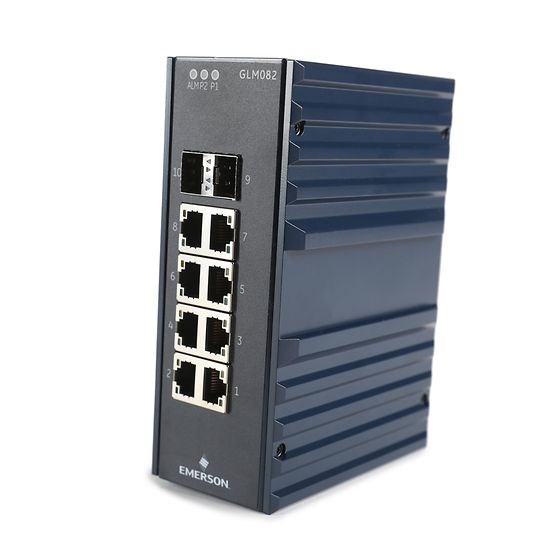

PROFINET I/O Profile Managed Gigabit Ethernet Switch

Brand

Emerson

Series

PACSystems

Electrical

Power Consumption

12.5W

Supply Voltage

12V to 58V DC

Dimensions & Physical Data

Depth

128mm

Height

154mm

Width

77mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP30

Communication & Control

Ethernet Port Speed 10/100/1000 Mbit/s, 100/1000 Mbit/s SFP	Ethernet Ports 10	Fieldbus Interface PROFINET
Supported Ethernet Protocols PROFINET, MRP, STP, RSTP, MSTP, LACP, IGMP, GVRP, LLDP, SNMP, Telnet, HTTP, HTTPS, SSH, TFTP, FTP, DHCP, SNTP

Safety, Standards & Compliance

Certifications / Approvals

CE, FCC Part 15, UL, CSA C22, EN 61010-1, CISPR 22 Class A, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32, RoHS, WEEE

Accessories & Additional Information

Development Software

PAC Machine Edition

ETHRNET SWITCH MANAGED GIGABIT 10 PORT PROFINET 2 SFP PORTS EMERSON

Product Code: IC086GLM082
