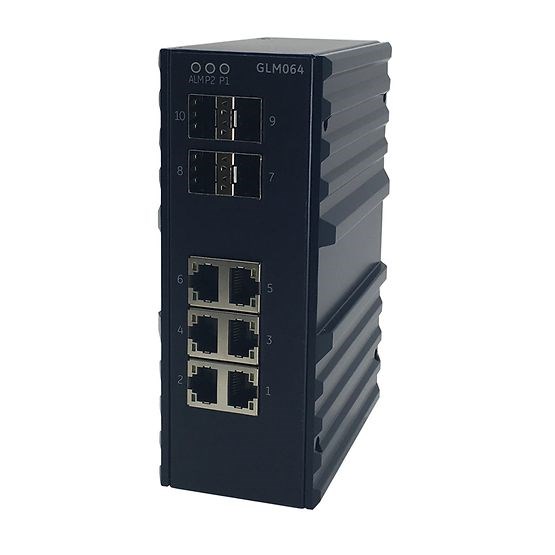

Emerson IC086GLM064 PROFINET Managed Gigabit EtherNet Switch 10/100 Mbps/1Gbps in RJ45: 6 100FX or 1000 BaseF

Product Code: IC086GLM064

  • 6 RJ-45 ports: 10/100 Mbps/1Gbps speeds
  • 4 SFP ports: 100FX or 1000 BaseF options
  • Compact size: 77mm x 154mm x 128mm
  • Wide temp range: -40 to 70°C
  • IP30 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switches
Brand
Emerson

Electrical

Input Voltage
IP30

Mechanical

Mounting
IEC68-2-6, -27, -32CE/FCC/ULUL/CSA C22, EN61010-1FCC Part 15, CISPR 22 (EN55022) Class A IEC61000-4-2, -3, -4, -5, -6RoHS (Pb free) and WEEE compliant

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 75°C

Communication & Control

Ethernet Ports
6
Supported Ethernet Protocols
12-58 VDC
Supported Serial Protocols
ProfinetSNTPDHCPIEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTPIGMPIEEE 802.1ab Link layer Discovery Protocol (LLDP)

Documents

IPD Product Catalogue V17
