Product Code: EPXPNS001

Supports Profinet protocol
Equipped with 2 RJ-45 terminals
Easy DIN rail mounting
Operates up to 60°C
IP20 protection rating

Specifications

General

Product Type

Network Adapter

Brand

Emerson

Series

RSTi-EP

Electrical

Supply Voltage

20.4V to 28.8V

Terminal Type

Spring-Style

Dimensions & Physical Data

Depth

52mm

Height

120mm

Width

76mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-20°C to 60°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 100 Mbps	Ethernet Ports 2	Expandable Communications Yes
Fieldbus Interface Ethernet	Serial Ports 0	USB Port 1
Supported Ethernet Protocols PROFINET Version 2.3 Class C I/O Device (IRT, RT)

Safety, Standards & Compliance

Hazardous Location Ratings

ROHS UL HazLoc Class 1 Division 2 ATEX Zone 2

Safety Integrity Level

SIL3

Certifications / Approvals

UL, cUL, UKCA, FCC

Accessories & Additional Information

Development Software

PAC Machine Edition

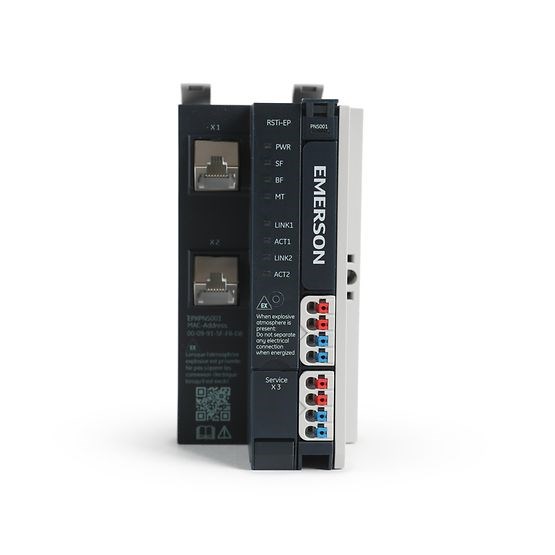

Emerson EPXPNS001 PACSystems™ RSTi-EP PROFINET IRT Network Adapter, 2 Cu RJ45 Ports

Product Code: EPXPNS001
