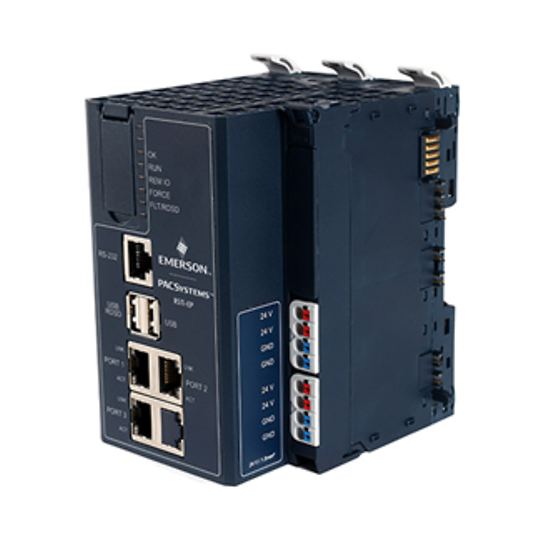

Emerson EPXCPE220 Controller 24VDC

Product Code: EPXCPE220

  • Supports Ethernet & Serial protocols incl. Modbus TCP
  • Operates on 24 VDC with redundancy support
  • Wide temp range: -40 to 70°C for harsh environments
  • Complies with ATEx Zone 2, UL, RoHS standards
  • Features 2 MB and 1 GB memory options
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Large Controller
Brand
Emerson
Series
RSTi-EP

Electrical

Digital Inputs
2048
Digital Outputs
2048
Analog Outputs
32128
Input Type
Voltage
Supply Voltage
24V DC
Terminal Type
Spring-Style
Analog Inputs
32128

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Ethernet Port Speed
100 / 1000 Mbps
Ethernet Ports
3
Expandable Communications
Yes
Fieldbus Interface
Ethernet
Serial Ports
1
USB Port
2
Supported Ethernet Protocols
SRTP Client/Server Modbus/TCP Client/Server OPC-UA Server EGD PROFINET DNP3 Outstation
Supported Serial Protocols
ASCII Serial, Modbus/RT Slave

Safety, Standards & Compliance

Hazardous Location Ratings
ROHS UL HazLoc Class 1 Division 2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, cUL, UKCA, FCC

Accessories & Additional Information

Development Software
PAC Machine Edition
