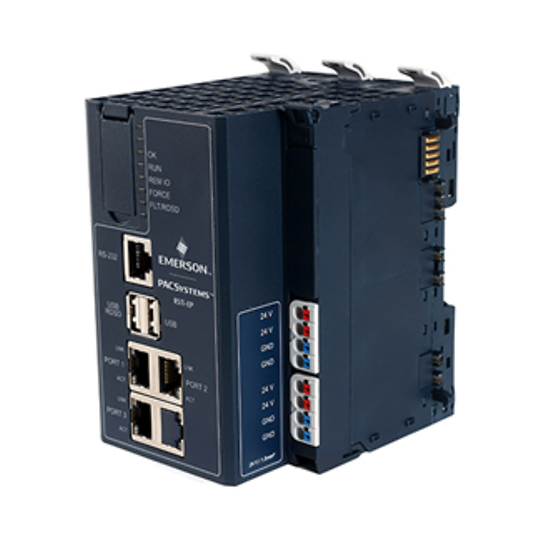

Emerson EPXCPE215 Controller 24VDC

Product Code: EPXCPE215

  • Supports multiple Ethernet protocols incl. Modbus TCP
  • Operates with RS-232/ASCII Serial, Modbus RTU-Slave
  • Runs on 24 VDC power supply
  • Wide temp range: -40 to 70°C
  • Complies with ATEx Zone 2, UL, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Large Controller
Brand
Emerson
Series
RSTi-EP

Electrical

Digital Inputs
2048
Digital Outputs
2048
No. of Analog Inputs
32128
No. of Analog Outputs
32128
No. of Digital Inputs
2048
No. of Digital Outputs
2048
Analog Outputs
32128
Input Type
Voltage
Supply Voltage
24V DC
Terminal Type
Spring-Style
Analog Inputs
32128

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Ethernet Port Speed
100 / 1000 Mbps
Ethernet Ports
3
Expandable Communications
Yes
Fieldbus Interface
Ethernet
Serial Ports
1
USB Port
2
Supported Ethernet Protocols
SRTP Client/Server Modbus/TCP Client/Server OPC-UA Server EGD PROFINET DNP3 Outstation
Supported Serial Protocols
ASCII Serial, Modbus/RT Slave

Safety, Standards & Compliance

Hazardous Location Ratings
ROHS UL HazLoc Class 1 Division 2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, cUL, UKCA, FCC

Accessories & Additional Information

Development Software
PAC Machine Edition
