Product Code: EPSCPE100

Supports Modbus, Profinet, OPC UA protocols
Includes 1 x RS-232 serial port
Easy DIN Rail mounting
Operates up to 70°C
IP20 protection rating

Specifications

General

Product Type

Standalone Edge Controller

Brand

Emerson

Series

RSTi-EP

Electrical

Digital Inputs 2k Bits	Digital Outputs 2k Bits	Analog Outputs 32k Bits
Input Ratings 9 V DC - 30 V DC	Input Type Voltage	Power Consumption 6W
Supply Voltage 24V DC	Analog Inputs 32k Bits

Dimensions & Physical Data

Depth

139.7mm

Height

134.62mm

Width

40.64mm

Environmental

Operating Temperature

-40°C to 70°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/ 100 Mbps	Ethernet Ports 4	Expandable Communications Yes
Fieldbus Interface Ethernet	Serial Ports 2	USB Port 1
Supported Ethernet Protocols SRTP Client/Server Modbus TCP/IP OPC-UA Server EGD PROFINET RT DNP3 Outstation capability over Ethernet	Supported Serial Protocols Modbus/RTU Serial I/O

Safety, Standards & Compliance

Hazardous Location Ratings

ROHS UL HazLoc Class 1 Division 2 ATEX Zone 2

Safety Integrity Level

SIL3

Certifications / Approvals

UL, cUL, FCC

Accessories & Additional Information

Development Software

PAC Machine Edition

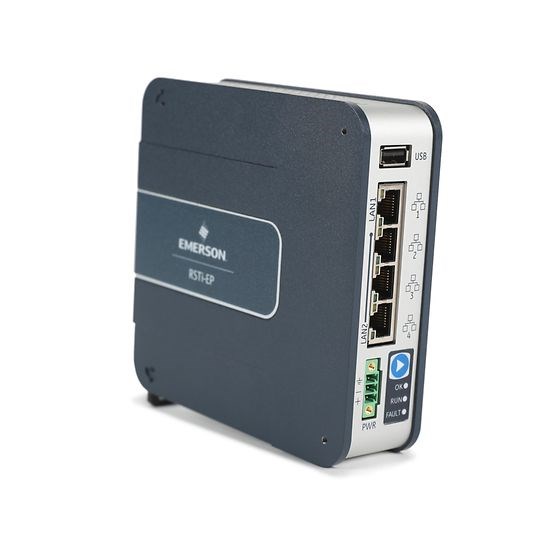

Emerson EPSCPE100 Standalone Controller

Product Code: EPSCPE100
