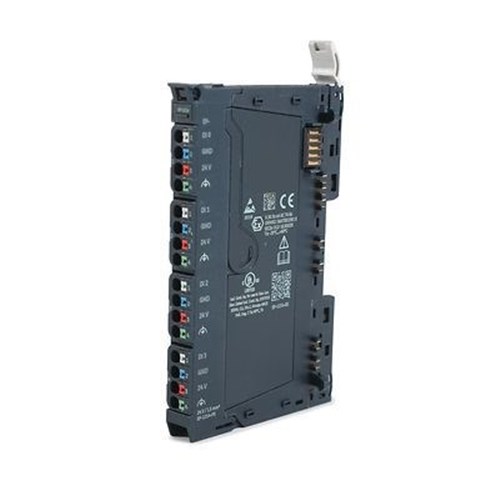

Emerson EP-5324 PACSystems™ RSTi-EP 4 Channels IO Link Communication Module, 24VDC, 0.5A

Product Code: EP-5324

  • 4-channel communication module
  • Works with PAC Systems RSTi-EP
  • 24 VDC rated voltage
  • Operates in -20 to 60°C range
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Special Function Modules
Brand
Emerson
Series
RSTi-EP

Electrical

Digital Inputs
4
Digital Outputs
4
Output Ratings
0.1 A in DO mode 0.5 A per channel in L+
Input Ratings
< 5 V Low > 11 V High
Input Type
IO-Link as per IEC 61131-9 Type 1 and Type 3 as per IEC 61131-2
Output Type
IO-Link as per IEC 61131-9
Supply Voltage
20.4V to 28.8V
Terminal Type
Spring-Style

Dimensions & Physical Data

Depth
11.5mm
Height
120mm
Width
76mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-20°C to 60°C
IP Rating
IP20

Communication & Control

Fieldbus Interface
IO-Link

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc Class 1 Division 2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE, FCC, CCC

Documents

IPD Product Catalogue V17
