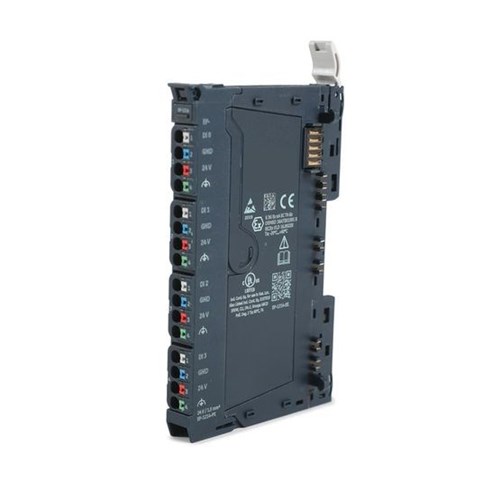

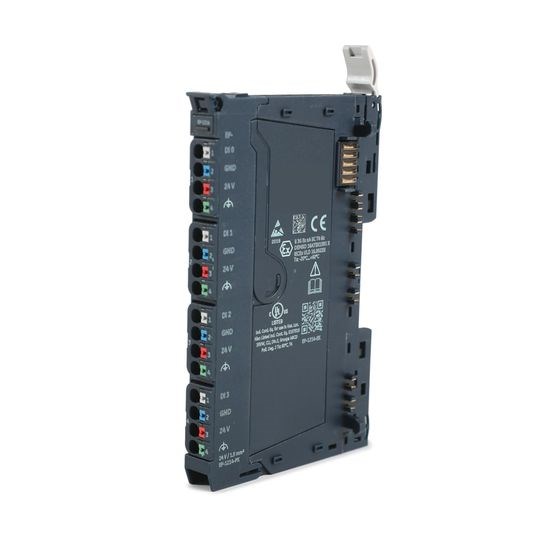

Emerson EP-5212 PACSystems™ RSTi-EP 2 Channel Frequency Measurement, 100 kHz

Product Code: EP-5212

  • Supports Profinet RT, Profibus, Modbus TCP & EtherCAT
  • Dual-channel I/O module with redundancy (PNSR)
  • DIN rail mounting for easy installation
  • Operates in -20 to 60°C temperature range
  • IP20 protection; ATEx & IECEx approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Special Function Modules
Brand
Emerson
Series
RSTi-EP

Electrical

Channel Isolation
Galvanic
Digital Inputs
2 Ch
Digital Outputs
0
Output Ratings
5~11V pulse rising edge
Input Ratings
< 5 V low, > 11 V high, 3.5 mA max., 100 kHz
Input Type
Pulse, rising edge
Supply Voltage
20.4V to 28.8V
Terminal Type
Spring-Style

Dimensions & Physical Data

Depth
11.5mm
Height
120mm
Width
76mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-20°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc Class 1 Division 2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE, FCC, CCC
