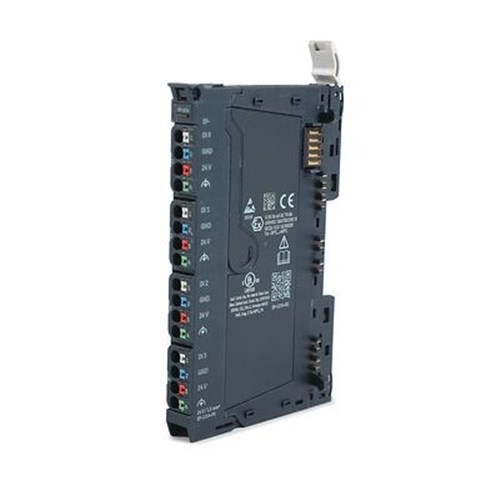

Emerson EP-3124 PACSystems™ RSTi-EP Analog Inputs 4 Channels Voltage/Current 12 Bits 2, 3, or 4 Wire

Product Code: EP-3124

  • Supports Modbus, Profinet, Profibus, EtherCAT, Ethernet/IP
  • 4-channel input module for versatile applications
  • Operates on 29 VDC with low current draw
  • Suitable for DIN rail mounting installations
  • Certified ATEx and IECEx for safety compliance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
RSTi-EP

Electrical

Analog Resolution
12 bit
Input Ratings
Voltage (0 - 5 V, ±5 V, 0 - 10 V, ±10 V, 1 - 5 V, 2 - 10V) Current (0 - 20 mA, 4 - 20 mA)
Input Type
Voltage/Current
Supply Voltage
20.4V to 28.8V
Terminal Type
Spring-Style
Analog Inputs
4

Dimensions & Physical Data

Depth
11.5mm
Height
120mm
Width
76mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-20°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc Class 1 Division 2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE, CCC

Documents

IPD Product Catalogue V17
