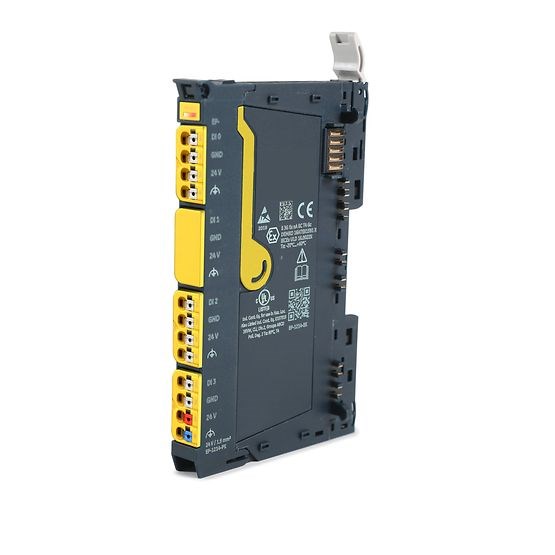

PACSYSTEMS 1 SAFE FEED INPUT 24 VDC EMERSON

Product Code: EP-1901

  • Supports Profinet RT, Profibus, Modbus TCP & EtherCAT
  • Single channel operation for streamlined use
  • Operates at 24 VDC with low current draw
  • DIN Rail mount for easy installation
  • IP20 protection rating for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safe Feed - Input Module
Brand
Emerson
Series
RSTi-EP

Electrical

Digital Inputs
1
Digital Outputs
1 (OSSD) 2 x 2 (Auxiliary Out)
Output Ratings
10 A (Auxiliary Out) 8 A (OSSD)
Input Ratings
24 V DC
Input Type
Safe feed input
Output Type
Current
Supply Voltage
20.4V to 28.8V DC
Terminal Type
Spring-Style

Dimensions & Physical Data

Depth
76mm
Height
120mm
Width
11.5mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-20°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2, ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE, CCC

Documents

IPD Product Catalogue V17
