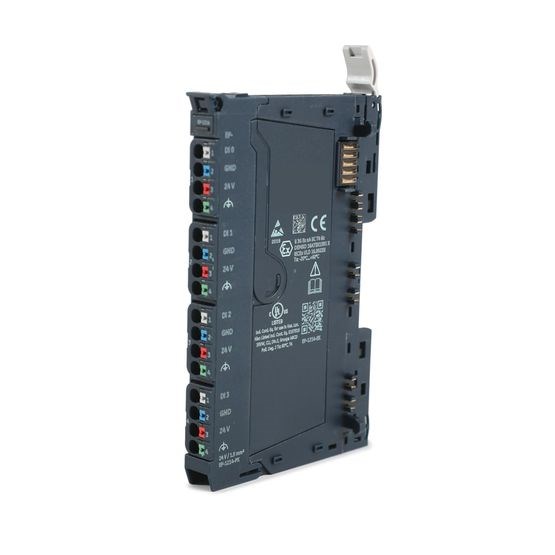

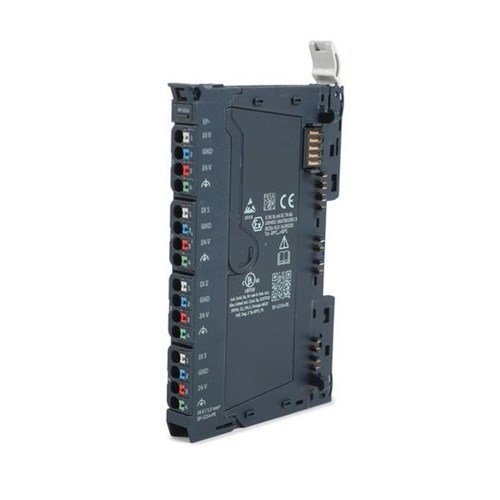

Emerson EP-1218 PACSystems™ RSTi-EP Digital Inputs 8 Points, Positive Logic, 24VDC 2 Wire

Product Code: EP-1218

  • Supports Profinet RT, Profibus, Modbus TCP & EtherCAT
  • 24 VDC rated voltage for reliable performance
  • Compact DIN rail mounting design
  • Operates in -20 to 60°C temperature range
  • IP20 protection for safe indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital Input Module
Brand
Emerson
Series
RSTi-EP

Electrical

Digital Inputs
8 Ch
Input Ratings
< 5 V Low > 11 V High
Input Type
Voltage
Supply Voltage
20.4V to 28.8V DC
Terminal Type
Spring-Style

Dimensions & Physical Data

Depth
11.5mm
Height
120mm
Width
76mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-20°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc Class 1 Division 2 ATEX Zone 2
Safety Integrity Level
SIL3
Certifications / Approvals
UL, CE, CCC

Documents

IPD Product Catalogue V17
