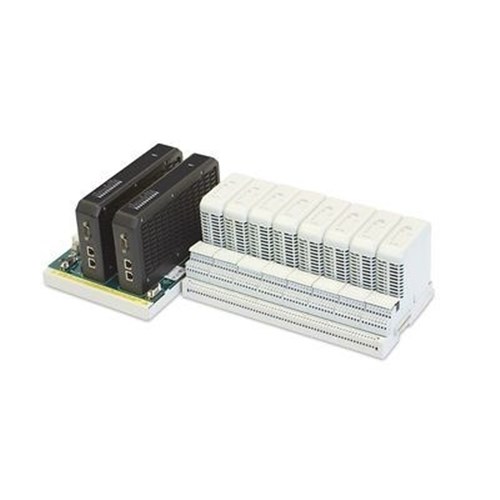

Emerson 8922-RB-IS Railbus Signal Isolator

Product Code: 8922-RB-IS

  • Suitable for PAC8000 series
  • Operates up to 70°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Railbus isolator
Brand
Emerson
Series
PAC8000

Electrical

Channel Isolation
Galvanically isolated
Input Type
DC
Output Type
DC
Power Consumption
1.2 W
Supply Voltage
12 VDC

Mechanical

Mounting Method
DIN-rail (T): 7.5 x 35 mm DIN-rail (T): 15 x 35 mm DIN-rail (G) Flat Panel

Dimensions & Physical Data

Depth
160 mm
Height
110 mm
Width
42 mm

Environmental

Operating Temperature
-40 to 70 °C
IP Rating
IP20

Communication & Control

Fieldbus Interface
Railbus

Safety, Standards & Compliance

Compliance Standards
EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU, ATEX Directive 2014/34/EU
Hazardous Location Ratings
Class 1, Div 2, Group A, B, C, D hazardous location Zone 2, IIC T4 hazardous area

Documents

IPD Product Catalogue V17
