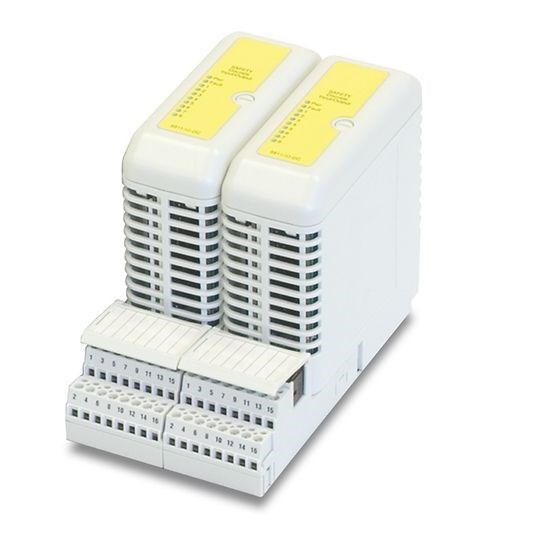

Emerson 8811-IO-DC 8-Channel Safety Digital Input/Digital Output

Product Code: 8811-IO-DC

  • 8-channel I/O module for versatile applications
  • Rated current options: 70 mA, 50 mA
  • Operates in -40 to 70°C environments
  • IP20 protection for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital I/O Module
Brand
Emerson
Series
PAC8000

Electrical

Output Ratings
24 V DC
Analog Outputs
0
Input Ratings
24 V DC
Input Type
Safety discrete input
Output Type
Safety discrete output
Supply Voltage
24V DC
Analog Inputs
0

Dimensions & Physical Data

Depth
106mm
Height
110mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2 Groups A-D T4, ATEX Zone 2 Ex ic nA IIC T4 Gc, Ex nA nL IIC T4 Gc, ATEX Zone 22 Ex tc IIIC T100 °C
Certifications / Approvals
EN 61131-2:2007, EN 61326-1:2013, EN 60079-0:2012 + A11:2013, EN 60079-11:2012, EN 60079-15:2010, EN 50581:2012, FM Class 3600, FM Class 3611, FM Class 3810

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
