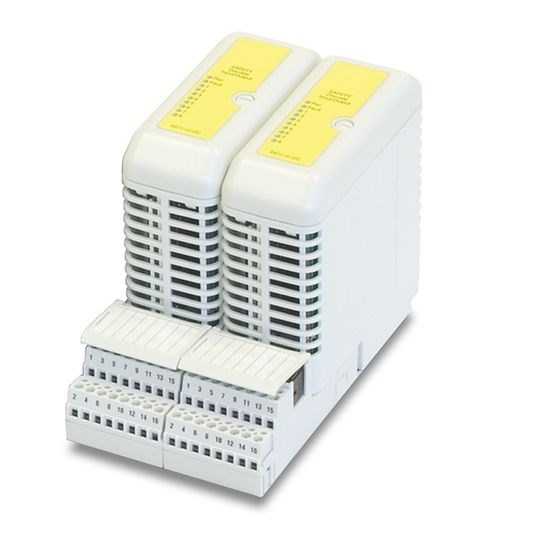

Emerson 8810-HI-TX 8-Channel Safety Analog Input

Product Code: 8810-HI-TX

  • Supports HART communication protocols
  • Features 8 input/output channels
  • Rated current options: 70 mA, 350 mA
  • Compatible with PAC8000 Remote I/O systems
  • Operational temp range: -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bus Interface Carrier
Brand
Emerson
Series
PAC8000

Electrical

Analog Resolution
16 bit
Input Ratings
4 to 20 mA, converted range 0 to 25 mA
Input Type
Current, HART, 2-wire, 3-wire or 4-wire transmitter
Analog Inputs
8

Dimensions & Physical Data

Depth
106mm
Height
110mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2, Groups A, B, C, D, T4 at 70 °C
Safety Integrity Level
SIL 2
Certifications / Approvals
UL, CE

Accessories & Additional Information

Development Software
Workbench

Documents

IPD Product Catalogue V17
