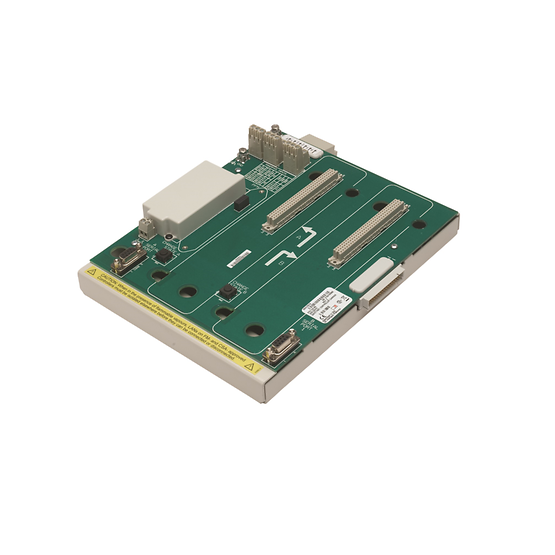

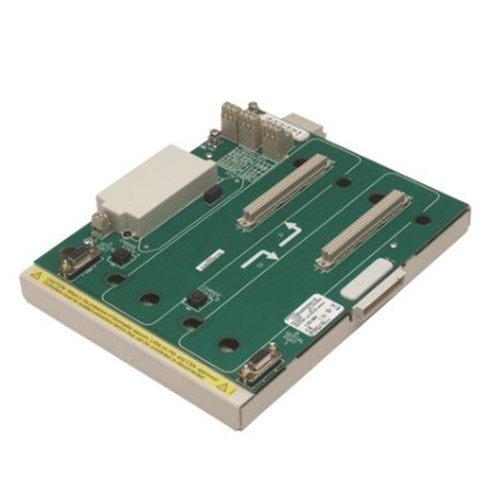

Emerson 8755-CA-NS EBIM Carrier

Product Code: 8755-CA-NS

  • 9 serial ports for versatile connectivity
  • Panel mounting for easy installation
  • Operates from -40 to 70°C
  • IP20 protection rating
  • ATEx and IECEx certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bus Interface Carrier
Brand
Emerson
Series
PAC8000

Electrical

Supply Voltage
12V DC
Terminal Type
Railbus male out, M4 screw terminals, 6-pin male connector, 12-pin male connector

Dimensions & Physical Data

Depth
170mm approx.
Height
40mm approx.
Width
170mm approx.

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 70°C

Communication & Control

Fieldbus Interface
Railbus

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2 Groups A-D, Equipment Group II Category 3 Gas Groups A-C
Certifications / Approvals
UL 61010-1, FM Class 3600:2011, FM Class 3611:2016, FM Class 3810:2017, CAN/CSA C22.2 No. 61010-1-16, CAN/CSA C22.2 No. 213-17, EN 60079-0:2012+A11:2013, EN 60079-7:2015, RoHS Directive 2011/65/EU

Documents

IPD Product Catalogue V17
