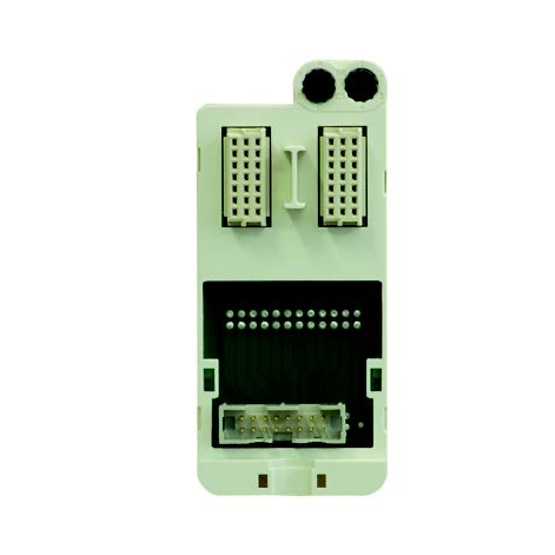

Emerson 8619-FT-MT Mass Termination Assembly For PAC8000 Remote I/O

Product Code: 8619-FT-MT

  • Compatible with PAC8000 Remote I/O
  • Operates in -40 to 70°C range
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Field Terminals Accessories
Brand
Emerson
Series
PAC8000

Electrical

Terminal Type
20-pin and 24-pin IDC connectors

Mechanical

Housing Material
Modified Poly-Phenylene Oxide

Dimensions & Physical Data

Depth
88mm
Height
39.5mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C

Communication & Control

Expandable Communications
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2
Certifications / Approvals
Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU, ATEX Directive 2014/34/EU

Documents

IPD Product Catalogue V17
