Product Code: 8522-EB-MT

Compact communication module design
Operates at 13 VDC, 15 mA
IP20 protection for indoor use
Part of the PAC8000 series

Specifications

General

Product Type

Ethernet Bus Interface

Brand

Emerson

Series

PAC8000

Electrical

Power Consumption

4.8 W (6 W max.)

Supply Voltage

10.9 to 12.6 V DC

Terminal Type

Two RJ45 8-pin connectors, customized 12-pin connector

Mechanical

Mounting Method

DIN Rail

Dimensions & Physical Data

Depth

160 mm approx.

Height

120 mm approx.

Width

40 mm approx.

Environmental

Storage Temperature

-40 to 85 °C

Operating Temperature

-40°C to +70°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10 to 100 Mbit/s	Ethernet Ports 2	Fieldbus Interface Ethernet
Serial Ports 0	Supported Ethernet Protocols Modbus TCP, SNTP, API

Safety, Standards & Compliance

Compliance Standards

UL, CE

Hazardous Location Ratings

Class 1, Div 2, Groups A, B, C, D T4 Zone 2

Accessories & Additional Information

Development Software

I/O Configurator 4.0.0.162 or later, Firmware Downloader 2.13.0.0 or later

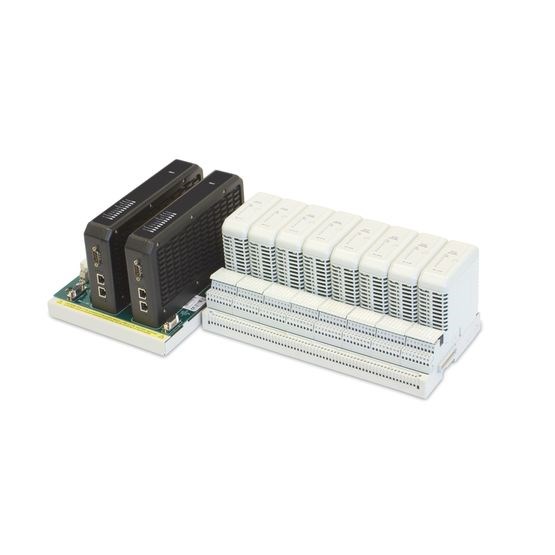

Emerson 8522-EB-MT EtherNet Bus Interface 13VDC
