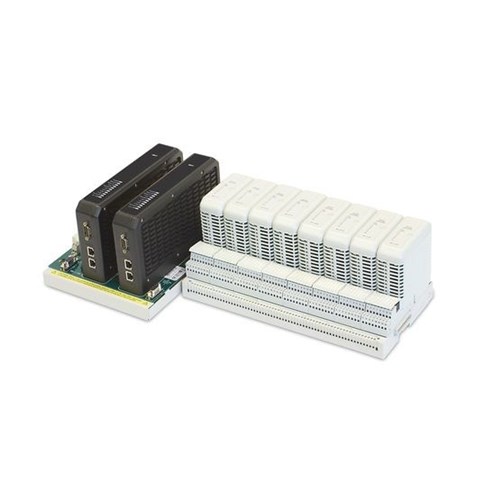

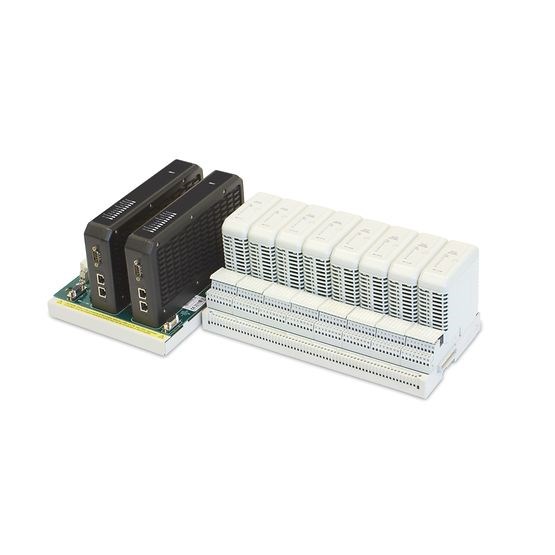

Emerson 8516-BI-PN Multi-Mode Mmf Scanner For PAC8000 Remote I/O

Product Code: 8516-BI-PN

  • Compatible with PAC8000 Remote I/O
  • Operates in -40 to 70°C range
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
PROFINET Scanner Module
Brand
Emerson
Series
PAC8000

Electrical

Power Consumption
6 W, 7.2 W max.
Terminal Type
2 x SC-Duplex, 1 x Micro-B USB

Mechanical

Mounting Method
Horizontal DIN rail

Environmental

Operating Temperature
-40 to 70 °C

Communication & Control

Ethernet Port Speed
100 Mbit/s
Ethernet Ports
2
Fieldbus Interface
PROFINET
USB Port
1
Supported Ethernet Protocols
PROFINET V2.3 Class A, MRP, LLDP

Safety, Standards & Compliance

Compliance Standards
EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU, ATEX Directive 2014/34/EU, cULus
Hazardous Location Ratings
Class I Div 2 Groups A-D; Ex nA IIC T5 Gc X

Accessories & Additional Information

Development Software
PAC Machine Edition, PROFINET V2.3 GSDML

Documents

IPD Product Catalogue V17
