Specifications

Product Type

Analog Input Modules

Brand

Emerson

Series

PAC8000

Analog Resolution 16 bits	Channel Isolation 60 V peak channel to Railbus	Digital Inputs 0
Digital Outputs 0	Analog Outputs 0	Input Ratings B ( 0-1820°C), E ( -270-1000°C), J ( -210-1200°C), K ( -270-1372°C), N ( -270-1300°C), R ( -50-1767°C), S ( -50-1767°C), T ( -270-400°C), W3 ( 0-2315°C), W5 ( 0-2320°C), Russian K ( -200-1300°C), Russian L ( -200-800°C), -8-24 mV -20-60 mV -33.33-100 mV -100-100mV
Input Type Thermocouple/ Voltages	Power Consumption 1.5 W	Supply Voltage Railbus : 12 VDC
Terminal Type Screw Terminal	Analog Inputs 8 Ch

Mounting Method

DIN Rail

Depth

106 mm

Height

110 mm

Width

42 mm

Conformal Coating

Yes

Operating Temperature

-40°C to +70°C

IP Rating

IP20

Compliance Standards

CSA

Hazardous Location Ratings

Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres

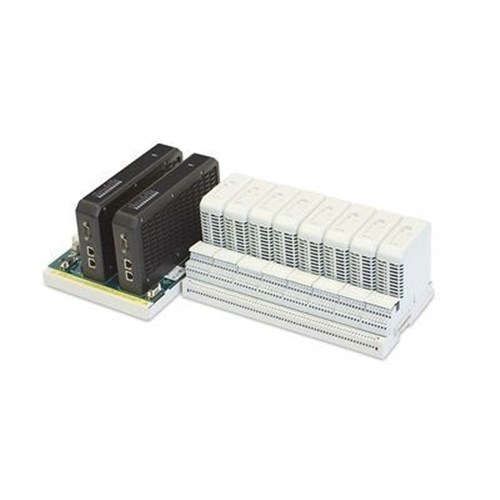

Emerson 8205-TI-IS 8-Channel Intrinsically Safe Thc/mv Input
