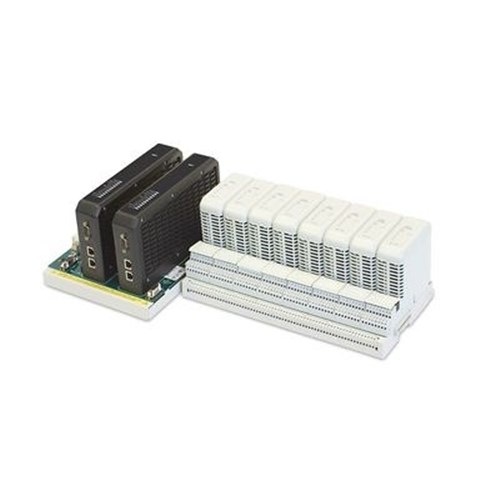

Emerson 8202-HO-IS 8-Channel Intrinsically Safe Analog Output 8 Analogue Outputs

Product Code: 8202-HO-IS

  • Supports Modbus, Profinet, HART protocols
  • 8 channels for versatile output options
  • Rated current capacity of 630 mA
  • Easy DIN rail mounting installation
  • IP20 protection rating for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Output Modules
Brand
Emerson
Series
PAC8000

Electrical

Analog Resolution
12 bits
Channel Isolation
60 V AC to Railbus
Output Ratings
4-20 mA
Analog Outputs
8 Ch
Output Type
Current
Power Consumption
4.1 W
Supply Voltage
Railbus : 12 VDC
Terminal Type
Screw Terminal

Mechanical

Mounting Method
DIN Rail

Dimensions & Physical Data

Depth
106 mm
Height
110 mm
Width
42 mm

Environmental

Conformal Coating
Yes
Operating Temperature
-40°C to +70°C
IP Rating
IP20

Safety, Standards & Compliance

Compliance Standards
CSA
Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres

Documents

IPD Product Catalogue V17
