Product Code: 8201-HI-IS

Supports Modbus, Profinet, HART protocols
8 channels for versatile input options
Rated current of 600 mA
Easy DIN rail mounting
IP20 protection rating

Specifications

General

Product Type

Analog Input Modules

Brand

Emerson

Series

PAC8000

Electrical

Analog Resolution 16 bits	Channel Isolation Galvanically isolated	Digital Inputs 8 Ch
Digital Outputs 0	Analog Outputs 0	Input Ratings 4-20 mA
Input Type Current	Power Consumption 4.2 W	Supply Voltage Railbus : 12 VDC
Terminal Type Screw Terminal	Analog Inputs 8 Ch

Mechanical

Mounting Method

DIN Rail

Dimensions & Physical Data

Depth

106 mm

Height

110 mm

Width

42 mm

Environmental

Conformal Coating

Yes

Operating Temperature

-40°C to +70°C

IP Rating

IP20

Safety, Standards & Compliance

Compliance Standards

CSA

Hazardous Location Ratings

Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres

Accessories & Additional Information

Development Software

PAC Machine Edition

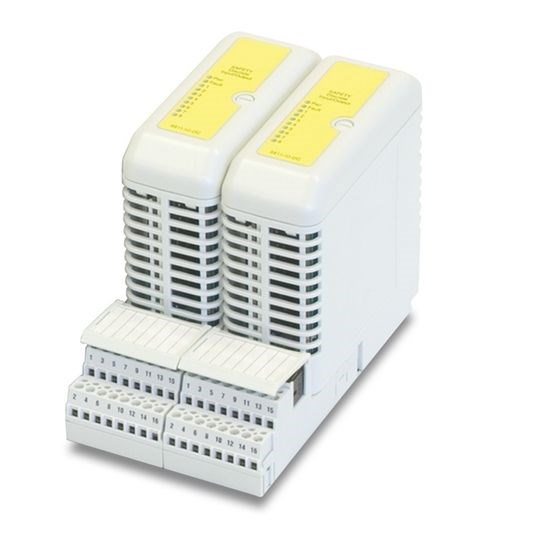

Emerson 8201-HI-IS 8-Channel Intrinsically Safe Analog Input

Product Code: 8201-HI-IS
