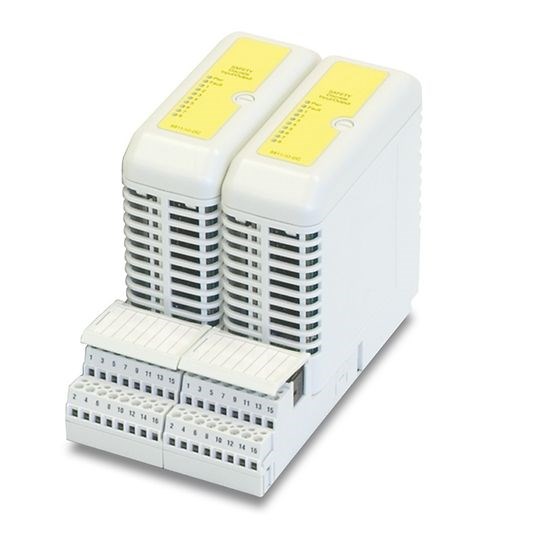

Emerson 8142-DO-DC 16-Channel Digital Output 12-42VDC

Product Code: 8142-DO-DC

  • 16-channel I/O module
  • Voltage range: 12-42 VDC
  • Current rating: 125 mA
  • Compatible with PAC8000 Remote I/O
  • Operates in -40 to 70°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital Output Module
Brand
Emerson
Series
PAC8000

Electrical

Channel Isolation
Galvanically isolated
Digital Inputs
0
Digital Outputs
16 Ch
Output Ratings
12-42 VDC
Analog Outputs
0
Output Type
Voltage
Supply Voltage
Railbus : 12 VDC Bussed Field: 12 VDC - 42 VDC
Terminal Type
Screw Terminal
Analog Inputs
0

Dimensions & Physical Data

Depth
106mm
Height
110mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres
Certifications / Approvals
CSA

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
