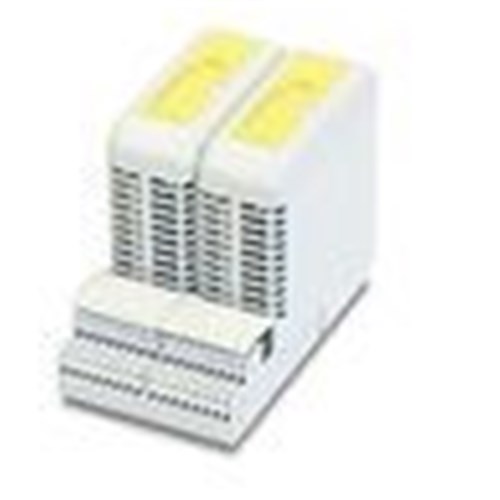

Emerson 8132-AI-UN 8-Channel Isolated Universal Analog Input

Product Code: 8132-AI-UN

  • 8-channel I/O module
  • Rated current: 60 mA
  • Works with PAC8000 Remote I/O
  • Operates in -40 to 70°C range
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
PAC8000

Electrical

Analog Resolution
15 bits
Channel Isolation
Galvanically isolated
Input Ratings
4 to 20 mA/THC/RTD/Voltage
Input Type
Thermocouple/ Voltages
Supply Voltage
Railbus : 12 VDC Bussed Field: 24 VDC
Terminal Type
Screw Terminal
Analog Inputs
8 Ch

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres
Certifications / Approvals
CSA

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
