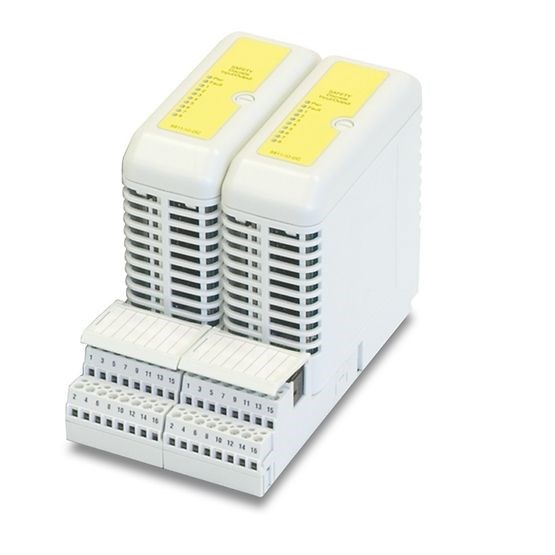

Emerson 8127-DI-SE 32-Channel SOE Module 18-30VDC

Product Code: 8127-DI-SE

  • 32-channel I/O module for versatile applications
  • Compatible with PAC8000 Remote I/O systems
  • Operates in temperatures from -40 to 70°C
  • IP20 rating ensures basic protection
  • Includes line fault detection feature
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soe Module
Brand
Emerson
Series
PAC8000

Electrical

Channel Isolation
250 V AC channel to Railbus
Digital Inputs
32
Digital Outputs
0
Analog Outputs
0
Input Ratings
0 to 12 V DC, < 1.2 mA OFF, > 2.1 mA ON
Input Type
Switch or proximity detector; DI, SOE or both
Supply Voltage
24V DC
Terminal Type
8617-FT-NI or 8619-FT-MT field terminal
Analog Inputs
0

Dimensions & Physical Data

Depth
106mm
Height
110mm
Width
42mm

Environmental

Operating Temperature
-40 to 70 °C normal orientation, -40 to 50 °C other orientations
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2 Groups A-D T4; Ex [ic] nA [nL] IIC T4 Gc
Certifications / Approvals
CSA

Accessories & Additional Information

Development Software
PAC8000 Workbench, SOE Event Logger
