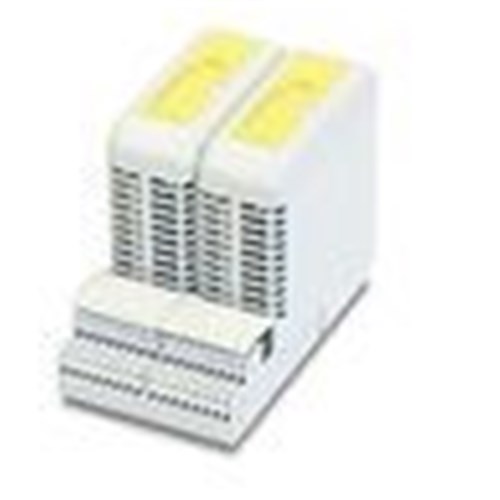

Emerson 8122-DI-DC 16-Channel Digital Input 18-30VDC Isolated

Product Code: 8122-DI-DC

  • 16-channel I/O module for versatile applications
  • Operates on 18-30 VDC, isolated for safety
  • Compatible with PAC8000 Remote I/O systems
  • Handles current up to 190 mA efficiently
  • IP20 protection, ideal for controlled environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital Input Module
Brand
Emerson
Series
PAC8000

Electrical

Channel Isolation
Galvanically isolated
Digital Inputs
16 Ch
Input Ratings
-25 V to +30 VDC
Input Type
Voltage
Supply Voltage
Railbus : 12 VDC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres
Certifications / Approvals
CSA

Accessories & Additional Information

Development Software
PAC Machine Edition
