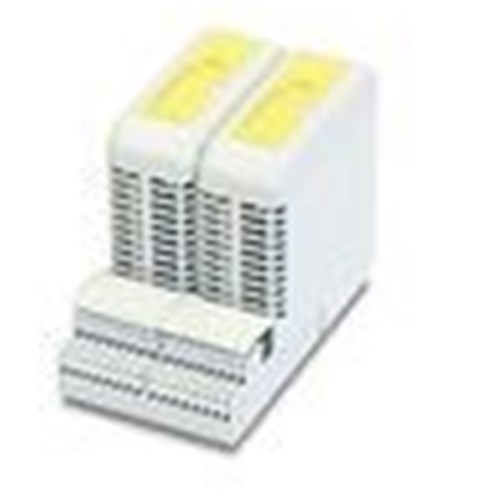

Emerson 8111-DI-AC 8-Channel Digital Input 115VAC Isolated 8 Digital Inputs

Product Code: 8111-DI-AC

  • 8-channel I/O module for versatile applications
  • 115 VAC isolated rated voltage
  • Compatible with PAC8000 Remote I/O systems
  • Operates in -40 to 70°C temperature range
  • IP20 protection rating for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital Input Module
Brand
Emerson
Series
PAC8000

Electrical

Digital Inputs
8 Ch
Input Ratings
130 VAC (max)
Input Type
Voltage
Supply Voltage
Railbus : 12 VDC
Terminal Type
Screw Terminal

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres
Certifications / Approvals
CSA

Accessories & Additional Information

Development Software
PAC Machine Edition
