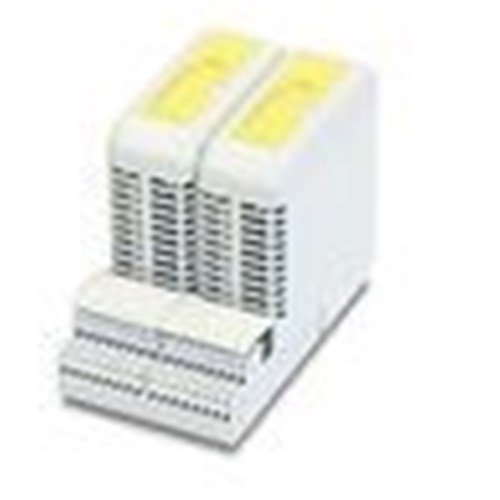

Emerson 8110-DI-DC 8-Channel Digital Input 24VDC Non-Isolated 8 Digital Inputs

Product Code: 8110-DI-DC

  • 8-channel I/O module for versatile applications
  • Operates at 24 VDC non-isolated voltage
  • Compatible with PAC8000 Remote I/O systems
  • Handles current of 35 mA and 55 mA
  • IP20 protection, suitable for harsh environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital Input Module
Brand
Emerson
Series
PAC8000

Electrical

Channel Isolation
250 V AC
Digital Inputs
8 Ch
Digital Outputs
0
Analog Outputs
0
Input Ratings
As per Bussed Field Power
Input Type
Current
Power Consumption
40 mA, @ 18—30V dc
Supply Voltage
Railbus : 12 VDC Bussed Field: 24 VDC
Terminal Type
Screw Terminal
Analog Inputs
0

Dimensions & Physical Data

Depth
106mm
Height
110mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres
Certifications / Approvals
CSA

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
