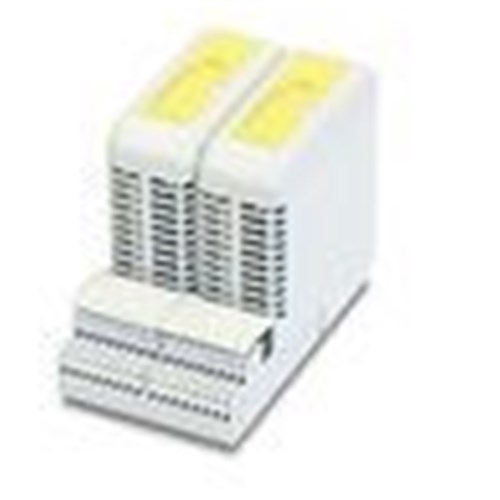

Emerson 8105-TI-TC 4-Channel Thermocouple/mv Input

Product Code: 8105-TI-TC

  • 4-channel I/O module for diverse applications
  • Rated current of 200 mA per channel
  • Compatible with PAC8000 Remote I/O systems
  • Operates in temperatures from -40 to 70°C
  • IP20 protection for safe indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Temperature Input Modules
Brand
Emerson
Series
PAC8000

Electrical

Analog Resolution
15 bits
Input Ratings
(0 to 120 mV), THC: B ( 0-1820°C), E ( -270-1000°C), J ( -210-1200°C), K ( -270-1372°C), N ( -270-1300°C), R ( -50-1767°C), S ( -50-1767°C), T ( -270-400°C), W3 ( 0-2320°C), W5 ( 0-2320°C)
Input Type
Voltage
Supply Voltage
Railbus : 12 VDC
Terminal Type
Screw Terminal
Analog Inputs
4 Ch

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
42mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 2 ISA Level G3 corrosive atmospheres
Certifications / Approvals
CSA

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
