Specifications

Product Type

Analog Output Modules

Brand

Emerson

Series

PAC8000

Analog Resolution 12 bits	Channel Isolation 100 V AC to Railbus	Output Ratings 4 to 20 mA, full range 1 to 23 mA, 20 mA at 21.6 V DC into 700 O
Analog Outputs 8	Input Ratings 4-20 mA	Input Type Current
Output Type Current	Supply Voltage Railbus : 12 VDC Bussed Field: 24 VDC	Terminal Type Screw Terminal

Depth

106mm

Height

110mm

Width

42mm

Operating Temperature

-40°C to 70°C

IP Rating

IP20

Conformal Coated

Yes

Hazardous Location Ratings

Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 1

Certifications / Approvals

UL, CE, CSA

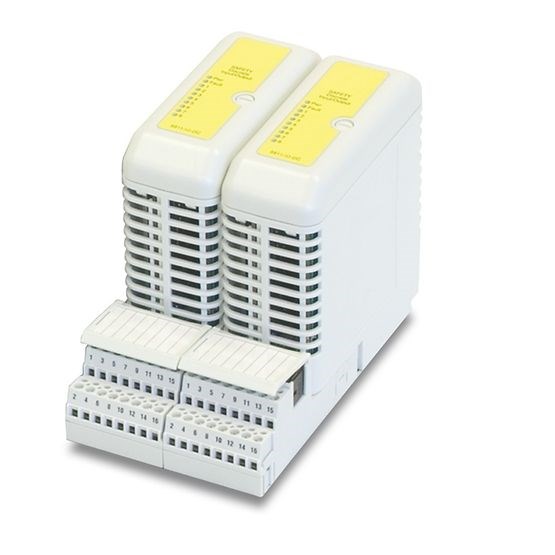

Emerson 8104-AO-IP 8-Channel Analog Output 8 Analogue Outputs
