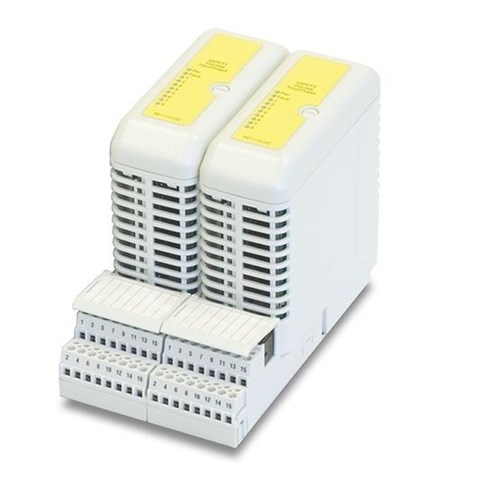

Emerson 8101-HI-TX 8-Channel Analog Input

Product Code: 8101-HI-TX

  • 8-channel I/O module with HART protocol
  • Compatible with PAC8000 Remote I/O
  • Operates in -40 to 70°C temperature range
  • IP20 protection rating
  • Open and short circuit fault detection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
PAC8000

Electrical

Analog Resolution
16 bits
Channel Isolation
100 V AC to Railbus
Output Ratings
32 mA (max)
Analog Outputs
8 Ch
Input Ratings
4-20 mA
Input Type
Current
Output Type
Current
Supply Voltage
Railbus : 12 VDC Bussed Field: 24 VDC
Terminal Type
Screw Terminal
Analog Inputs
8 Ch

Dimensions & Physical Data

Depth
106mm
Height
110mm
Width
42mm

Environmental

Operating Temperature
- 40°C to + 70°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Class 1, Div 2, Groups A, B, C, D T4 ATEX Zone 1
Certifications / Approvals
UL, CE, CSA
