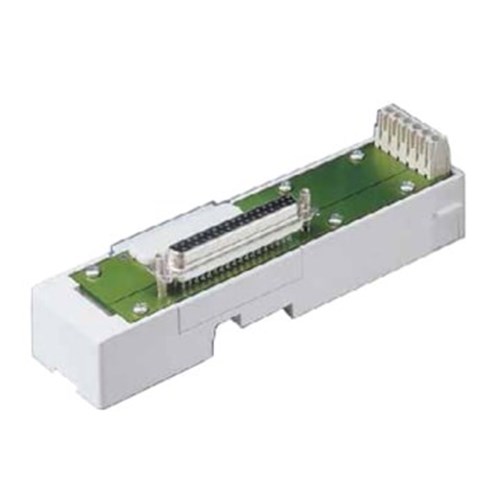

Product Code: 8020-CE-RH

Compatible with PAC8000 Remote I/O
Operates in -40 to 70°C temperature range
IP20 protection rating

Specifications

General

Product Type

Carrier Extender

Brand

Emerson

Series

PAC8000

Electrical

Terminal Type

Screw Terminal

Mechanical

Housing Material

Modified poly-phenylene oxide

Dimensions & Physical Data

Depth

168mm

Height

37mm

Width

42mm

Environmental

Storage Temperature

- 40°C to + 85°C

Operating Temperature

- 40°C to + 70°C

Communication & Control

Expandable Communications

Yes

Fieldbus Interface

Railbus

Safety, Standards & Compliance

Hazardous Location Ratings

Class 1, Div 2, Groups A, B, C, D T4 Zone 2

Certifications / Approvals

CE: EMC: EN 61326-1 FM: FM 3600/ FM 3611 CSA: CSA C22.2 No. 213/ CSA C22.2 No. 61010-1 ATEX: EN 60079-0/ EN 60079-7/ EN 60079- 15 Marine Certifications: IACS E10/ ABS Certificate of Design Assessment/ DNV Type Approval Certificate

Emerson 8020-CE-RH Right Hand Carrier Extender For PAC8000 Remote I/O

Product Code: 8020-CE-RH
