Modular portfolio ranges from 7" to 24" screens in a widescreen format, with 7" to 15" models also available with outdoor Sunlight Readable (SLR) screens. Effectively operate in temperatures as high as 65 degrees C and as low as -20 degrees C with the capability to operate indoors or outdoors. IP66 rated screens that protect against dust, moisture,and even direct water jets. Display Port-In and Display Port-Out connections allow for MST Daisy Chaining.

Specifications

Product Type

Touch Monitor

Brand

Emerson

Series

RXi

Power Consumption 5 W	Supply Voltage 24 V DC	Sunlight Readable Yes
Touch Type Projected Capacitive Touch

Housing Material

Aluminum Die Casting (Front)

Display Colour

Colour

Depth 65 mm	Height 137 mm	Width 192 mm
Panel Cut-Out Size 183.5 x 128.5 mm	Display Size 7 in

Storage Temperature

-30°C to +70°C

Operating Temperature

-20°C to +65°C

IP Rating

IP66/IP20

Compliance Standards

UL and cUL 62368, UL and cUL 61010, IECEE CB Scheme

Hazardous Location Ratings

UL Listed US/CAN Hazardous Locations: Class 1 Division 2, Class 2 Division 2, Class 3 Division 1 ATEX Zone 2/22 & IECEx

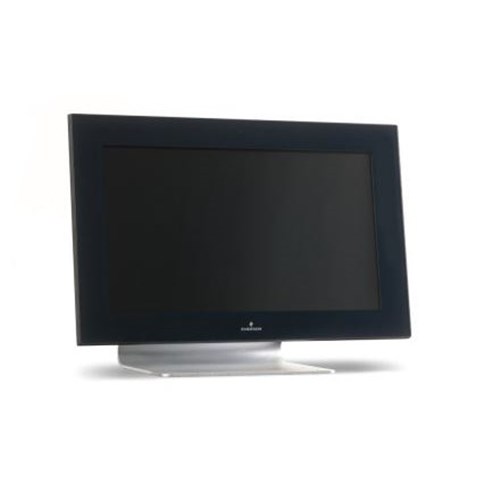

EMERSON 7" RXI TOUCH MONITOR OUTDOOR HDMI DISP'PORT IN/OUT 65Â°C CAPACITIVE 10 POINT HMI IC756COW07IM
