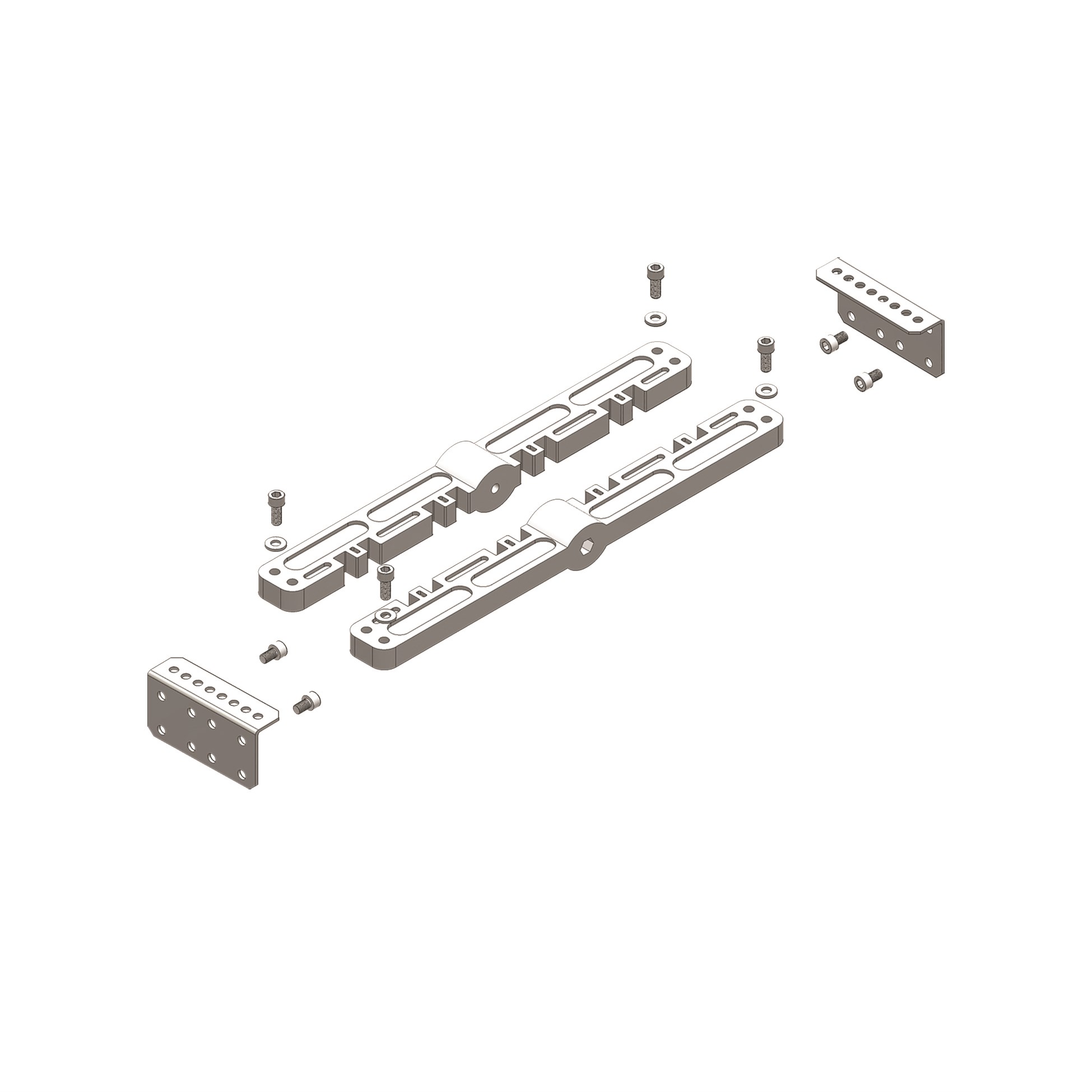

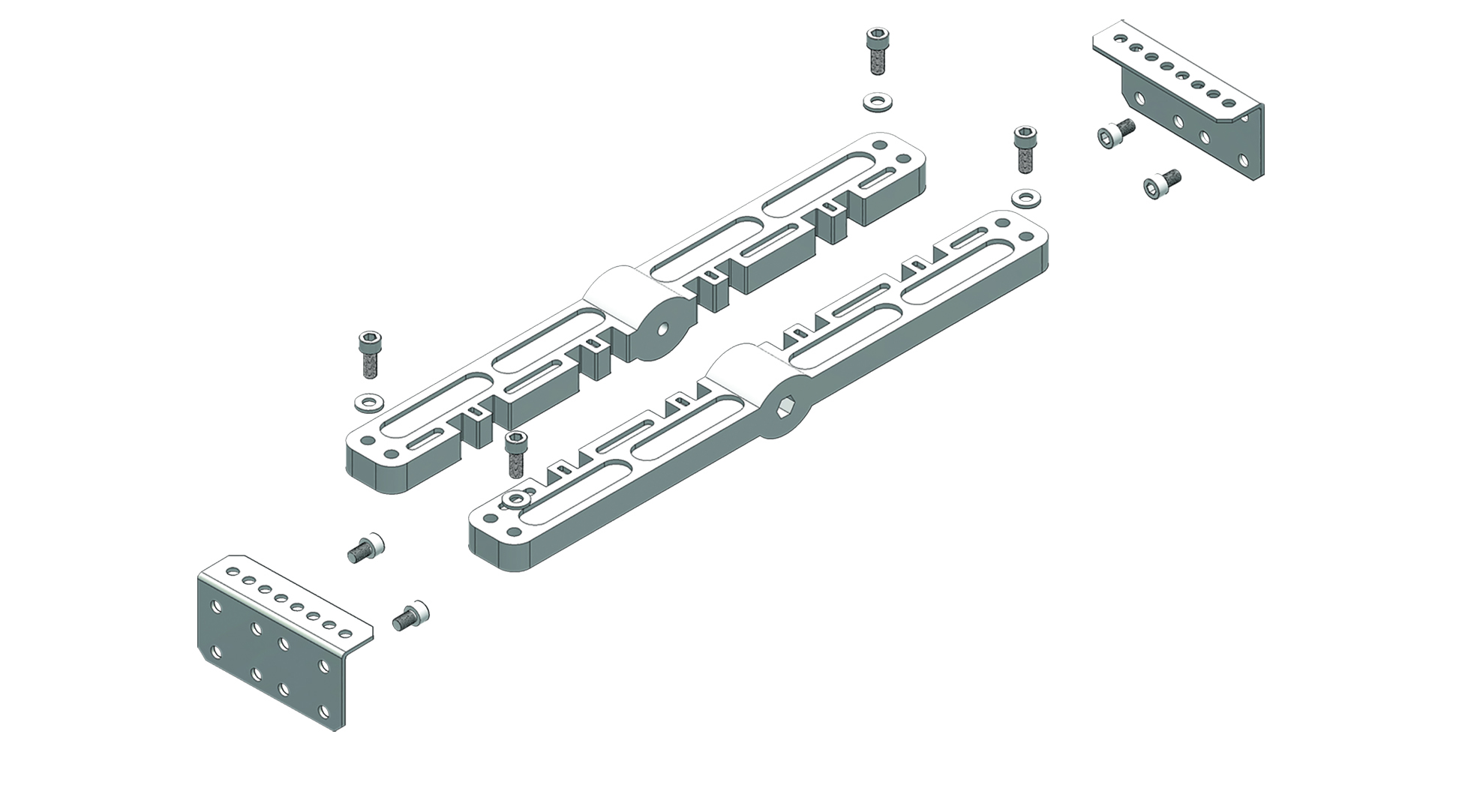

Elsteel UBH20550 Universal Busbar Holder 90mm W Busbar Rail 20550

Product Code: UBH20550

  • Supports up to 1250 A current
  • Compact 90 mm width design
  • Lightweight at just 0.59 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bus Bar Holder
Brand
IPD
Series
Techno Module

Electrical

Rated Short-time Current (Icw)
10 kA, 20 kA, 35 kA, 50 kA
Rated Current
1250 A
AS/NZS 61439: 1&2
Yes

Mechanical

Material
Self extinguishing fibre material / reinforced PC

Dimensions & Physical Data

Height
90 mm
Weight
0.59 Kg
Width
400 mm

Environmental

Pollution Degree
3

Documents

IPD Product Catalogue V17
